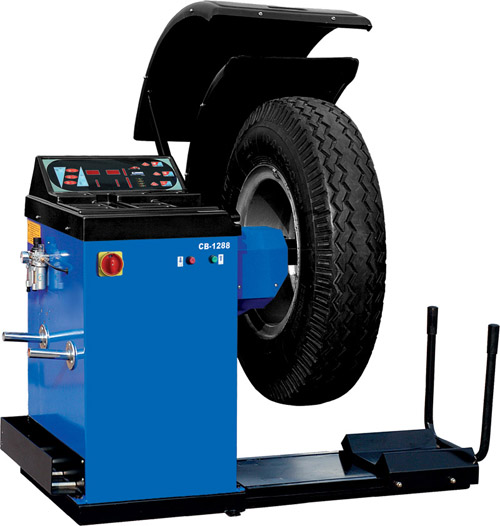

WHEEL BALANCER (Heavy Duty)
|
 |
TECHNICAL DATA :
|
Power Supply
|
380V/60 Hz/3 Ph
|
|
Power
|
0.75Kw
|
|
Working Air Pressure
|
0.3 – 0.6 MPa
|
|
Rim Width
|
3/20”
|
|
Rim diameter
|
12/24”
|
|
Max wheel diameter
|
40 – 150mm
|
|
Max wheel diameters
|
1200mm
|
|
Balancing time
|
Small Vehicle 7 Second & Larger Vehicle 10 Second
|
|
Balancing Speed
|
210 rpm
|
|
Balancing precision
|
Small Vehicle ± 1 gm and Larger Vehicle ± 25 gm
|
|
Net/Gross Weight : 300/370 Kg.
|
300/370 Kg
|
|
Packing dimension |
1700 x 880 x 1250 |
|
|
Features
|
|
|
|
It can use for heavy duty tyres i.e. Mini Bus & Trucks |
|
|
|
It can balance different size of wheels through pressing button MODE to Select |
|
|
|
Pneumatic lift makes the truck wheel balancing easily |
|
|
|
Automatic pneumatic brake, less noise |
|
|
|
The reinforced shaft structure ensures the stable measurement. |
|
|
|
Different wheels, different residual error, and automatically set up |
|
|
