Features :

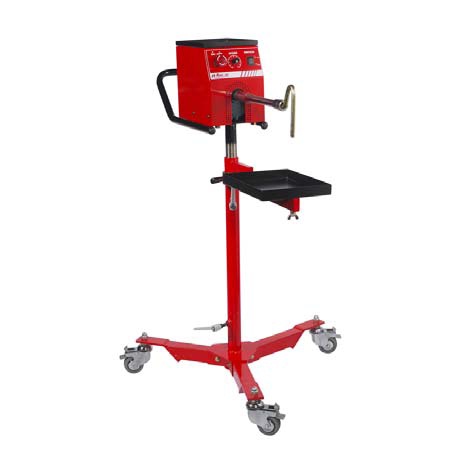

The highly accurate and dependable RL-18C on-the-car brake lathe
with power drive unit provides a consistently superior on-the-car rotor
finish by combining accuracy and speed features that work together to
help tackle today’s complex rotor finishing challenges. The unmatched
precision and accuracy of the RL-18C increases productivity by
reducing floor-to-floor times and minimizing comebacks.
Our exclusive
variable speed power-drive turns spindles at a fast or slow speeds for
better finish cuts and specially designed adapters assure that rotors are
machined to exact manufacturer's specifications. Our patented quickyoke
and coupling device attaches to a single lug bolt and automatically
centers itself to the power drive shaft. The RL-18C lathe attaches
directly to the brake caliper bracket, insuring fast easy machining with
no need for timely run-out compensation procedures.
|
|
|
|
 |
Provides a consistently superior on-the-car rotor finish. |
|
|
|
Attaches easily to the caliper.
|
|
|
|
Simultaneously machines both sides of the rotor parallel eliminating run-out problems. |
|
|
|
Rigid mounting and precision tool-holders eliminates flexing for maximum accuracy. |
|
|
|
Specially designed adapters assure that rotors are machined to
manufacturer's specifications. |
|
|
|
Comes standard with power-drive system that eliminates the need to rely on the car's
engine to turn the rotor. |
|
|
|
Variable speed power-drive turns spindle at fast or slow speeds for better finish cuts. |
|
|
|
The power-drive system allows for the ultimate surface finish for on-the-car machining
by maintaining proper turning speed. |
|
|
|
Sturdy cast iron construction. |
|
|
|
Patented yoke attaches to a single lug bolt & automatically centers itself. |
|
|
|
Patented coupling of the drive unit can be easily aligned with the yoke in preparation
for machining. |
|
|
|
Simple, user-friendly controls. Heavy-duty, fully adjustable power-drive stand |
|
|
|
Storage space and blow-molded plastic carrying case fro tools and accessories. |
|
|
|
Emergency stop switch. |
|
|
|
Heavy duty locking caster allows for fast and stable positioning of power
drive assembly. |
|
|
|
Max Rotor Thickness: 1-5/8” |
|
|
|
Max Rotor Diameter: 13-1/2” |
|
|
|
Shipping Weight: 125 lbs. |
|
|
|
Drive Unit; Motor: 1/2 HP / 110/220 Volts, 50/60 Hz. 1-Phase |
|
|
|
Max Rotor Thickness: 1-5/8” |
|
|
|
Max Rotor Diameter: 13-1/2” |
|
|
|
Shipping Weight: 125 lbs. |
