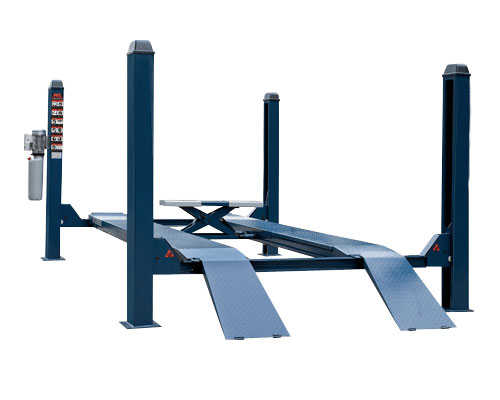

Four Post Alignment Lift
This model, which is of a unique design, is an ideal lift specifically for the repair & maintenance, tyre-changing, and four-wheel aligning maintenance of various of high-grade cars, middle & small trucks and buses, etc. The advantages is easy operation, smooth & reliable working process, high lifting insurance quotiety and durability.
New high quality 4-post lift for 2008 type, gathering with the advantages form the lift manufactured by overseas or domestic.
Polished design, two-layer hided structure whose capacity is excellent, and 1mm horizontal accuracy.
It implements new safe lifting technology of the world as one, included hydraulic control, electrical control and mechanical control.
Adjustable position for the turntable of front wheel, and lengthened sliding plate for rear wheel which could satisfy the auto with long or short axle.
Open or lock four safety device at one time through one-hand operation.
It implements safety device for steel-rope breaking and controlling switch for height limiting to make operator absolutely safe.
It is equipped with a secondary lifting jack, electrical & hydraulic control system. And its lifting capacity is 3.5T.
It has passed CE Test (Italy IG Company).
Technical Data :
Lifting Capacity 3500 Kg
Minimum Ground clearance 150 mm
Maximum Ground Clearance 1750 mm
Secondary Elevating Height 200mm
Secondary Elevating Weight 2000 Kg
Power of Motor 2.2 KW
Power Supply 415 V
Hydraulic Oil N46
Net Weight 900 Kg
