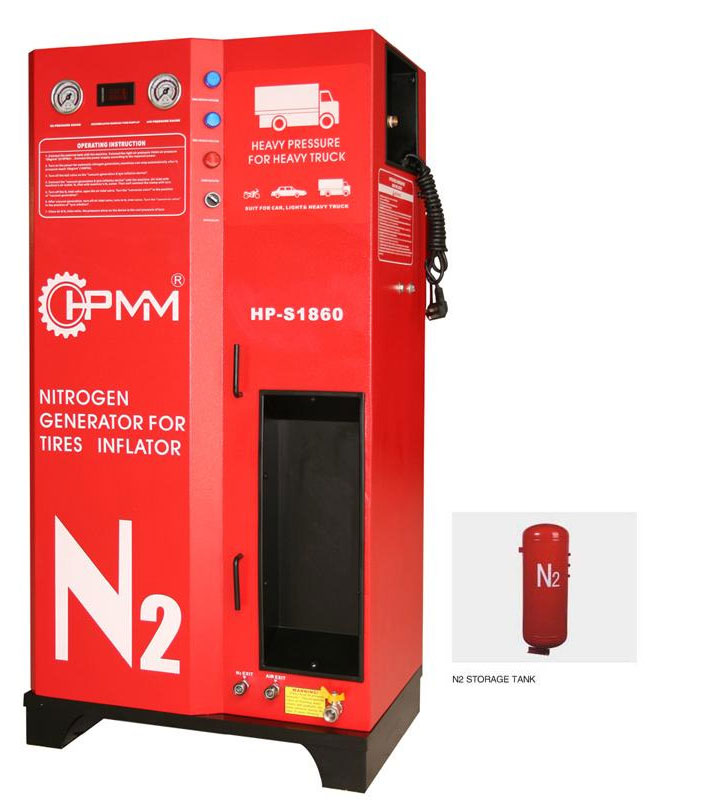

| NITROGEN GENERATOR & INFLATOR MACHINE (HEAVY DUTY)
|
 |
TECHNICAL DATA :
|
Product Name
|
Nitrogen Generator & Inflator Machine
|
|
Suit For
|
Car & Light Truck & HEAVY TRUCK
|
|
Power Supply
|
110/220V±10%,50/60Hz
|
|
Power Consumption
|
Through high quality filtration
|
|
Nitrogen Generated
|
PSA Technology
|
|
Nitrogen Purity
|
95~99%
|
|
Air Inlet Pressure
|
15kg/cm2;215PSI
|
|
Air compressor required
|
7.5~11KW,15kg/cm2, Exhaust volume:1~1.5M3/min,
|
|
Nitrogen Outlet Pressure
|
13kg/cm2;185PSI
|
|
N2 Output Capacity
|
80~120L/Min;21-31Gallon/Min,
2.8~4.24CFM
|
|
N2 Tank Capacity
|
70L/18.5Gallon inside; 130L/34.5Gallon outside
|
|
Max. Pressure for N2 Tank
|
13.5KG/CM2
|
|
Sensor Precision
|
5PSI
|
|
Operating Temperature
|
0-50°C,0-122°F
|
|
Standard Accessories
|
Two 10m length pu hoses+Vaccum Generator & N2 Inflator
device
|
|
Optional
|
220L/58Gallon N2 Tank External
|
|
|
Features :
|
|
|
|
Heavy duty suit for heavy truck
|
|
|
|
Fast Nitrogen generation & inflation speed
|
|
|
|
Automatic shut-off after nitrogen generation
|
|
|
|
200 Litre Nitrogen Tank enable enough storage of N2 for rush hours
|
|
|
|
Equipped with high pressure & precision oil/water vapour filter & seperator
|
|
|
|
Inside pipes made by metal, suitable for heavy pressure purposes
|
|
|
|
Quick coupler to connect the "Vaccum Generator & N2 Inflator device " with the
machine by two 10meters length hoses
|
