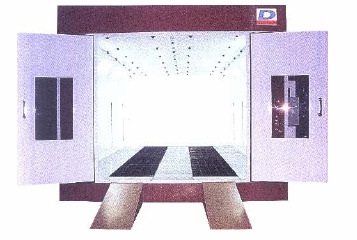

Paint Booth DynaSole
|
 |
|
Technical Specifications - Top end Model
|
|
|
|
| Type of Paint Booth |
Positive Pressure Paint Booth |
| Air Flow |
Vertical Down Draft |
| Working Size of the Booth |
Length : 7,000 mm
Width : 3,950 mm
Height : 2,600 mm |
| External Size of the Booth |
Length : 7,130 mm
Width : 4,050 mm
Height : 3,150 mm (3,500 mm with Metal Base) |
| Size of Service Door |
Height : 1,800 mm
Width : 600 mm |
| Booth construction |
50 mm thick Pre-fabricated double skinned panels in GI ,
insulated with non-combustible mineral fibre. |
| Thickness of Metal Base |
2.5 mm Sheet |
| Illumination
|
Top Left - 4 sets( 40W tubes 4 Nos. in each set)
Right-- 4 sets( 40W tubes 4 Nos. in each set)
Side Panels - Left- 4 sets( 40W tubes 2 Nos. in each
Set vertically)
Right – 4 sets.
|
| Illumination Level
|
More Than 1000 Lux
|
| Air Inlet Blower
|
Double Inlet Forward Curved Fan for silent function.
22,000 m3/hr, 10 HP motor, 1440 rpm, 3phase, 415 V
|
| Exhaust Blower
|
Double Inlet Forward Curved Fan for silent function.
15,000 m3/hr, 5 HP motor, 1440 rpm, 3phase, 415 V
|
| Heat Exchanger
|
Made of Stainless Steel
|
| Type of Burner
|
Automatic ( Imported)
|
| Heat output at full load
|
1,20,000 K.Cal/hr.
|
| Fuel
|
HSD
|
| Filters
|
Non wooven ( Imported)
|
|
