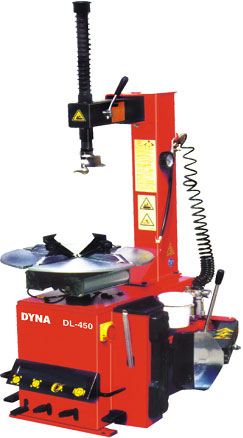

| TYRE CHANGER - 450 DYNA (IMPORTED) | |
|
|
| Features : | |
| . Foot valve adopts stainless steel valve rod | |
| Specifications : | |
| • Power Voltage : 110V/60 Hz/1 Ph/1.1 Kw | |
| • 220V/50 Hz/1 Ph/1.1 Kw | |
| • 380V/60 Hz/3 Ph/0.75 Kw | |
| • Working Air Pressure : 0.8-1.0MPa (115 - 145 PSI) | |
| • Rim Diameter : Inner 12" - 18" (305 - 457mm) | |
| • Outer 10" - 16" (255 - 405 mm) | |
| • Rim Width : 3" - 12" (75 - 305 mm) | |
| • Max. Wheel : 38" (980 mm) | |
| • Average Rotate speed : 6.8 rpm | |
| • Shovel force : 2000 Kg. | |
| • Net Weight : 200 Kg. | |
| • Packing dimension : 1000 x 920 x 980 mm | |
